Views: 0 Author: Site Editor Publish Time: 2026-05-21 Origin: Site
Industrial ventilation, pneumatic conveying, wastewater aeration, and process heating systems rely on precise air handling. Under-specifying equipment results in severe process bottlenecks. Over-specifying inflates energy overhead and causes accelerated mechanical wear. Facility operators need exact fluid dynamics to maintain operational efficiency and protect the bottom line.
Engineers and procurement teams frequently conflate standard fans with true industrial blowers. They often misunderstand how impeller geometries and pipe routing dictate static pressure within a closed loop. This fundamental error leads to costly system inefficiencies, hazardous material buildup, or catastrophic motor failure. Heavy industrial environments cannot tolerate these calculation failures.
This guide breaks down the precise fluid dynamics of a Centrifugal Blower. It compares impeller configurations and establishes a strict technical framework. You will learn how to size, configure, and source equipment from a qualified manufacturer to optimize your Total Cost of Ownership (TCO).
The Technical Threshold: A device is only classified as an industrial blower—not a standard fan—if it can generate a pressure ratio exceeding 1.2 mg/cm² at high volumes.
Fluid Dynamic Mechanics: Centrifugal blowers rely on a 90-degree airflow deflection and Bernoulli’s principle, utilizing a volute casing to convert high-velocity kinetic energy into usable static pressure.
Performance Laws: Unlike regenerative blowers that follow pump curves (max pressure = max power), centrifugal blowers follow Fan Laws (max flow = max power).
System Sizing Risks: Installing high-CFM blowers with undersized piping causes exponential static pressure accumulation, resulting in massive efficiency losses and potential fire hazards in exhaust applications.
Engineers must first separate standard ventilation equipment from authentic pressure-generating systems. The industry strictly defines this boundary using performance metrics, not just visual design. Recognizing this distinction prevents facility managers from deploying inadequate hardware in high-resistance environments.
A standard fan simply moves air from one open space to another. It cannot overcome substantial downstream resistance. A true industrial blower must generate a pressure ratio exceeding 1.2 mg/cm² while maintaining high volume output. This specific static pressure threshold defines the equipment classification. Devices operating below this limit fail under the resistance of industrial ductwork, thick HEPA filters, or fluid beds.
When measuring system resistance, standard ventilation fans usually operate below 2 inches of water gauge (in. WG). Industrial blowers easily exceed 10 to 100 in. WG depending on the motor horsepower and impeller design. We use these heavy-duty machines when air needs to move through dense particulate streams or long winding pipelines where fluid friction saps kinetic energy.
Airflow trajectory dictates pressure capabilities. The angle at which air travels through the device determines its ability to push through system friction. Different mechanical designs utilize specific angles to achieve varying degrees of volumetric flow and pressure.
Axial Fans (180°): These units utilize propellers to push air in a straight line. They work well in unpressurized marine vessels, server racks, or open garages. They instantly fail when subjected to significant system resistance because air slips back past the blade tips when pressure builds in the duct.
Centrifugal Blowers (90°): These systems utilize specialized impellers. They pull air into the rotational center and deflect it at a sharp 90-degree angle. This drastic redirection, combined with the centrifugal force of the spinning wheel, enables the unit to overcome severe downstream pipe resistance without air slip.
Mixed Flow Fans: This hybrid design utilizes tilted blades. It assists air propulsion by bridging the aerodynamic gap between axial and centrifugal designs. It offers moderate pressure and volume characteristics, functioning well in inline ducting where a 90-degree turn is architecturally impossible but moderate static pressure exists.
Understanding the internal fluid dynamics prevents improper application sizing. The process relies entirely on kinetic energy transfer and precise volumetric expansion. Engineers map this process to ensure the motor provides adequate shaft power to execute the physical work required.
Step 1: Air Entry at the "Eye"
Air draws directly into the center of the rotating impeller, known as the eye. This entry point sits parallel to the drive shaft. Advanced industrial designs utilize turbo impellers. These feature chamfered inducers, which are forward-curved inlet blades located at the diameter. These inducers scoop significantly higher volumes of air than standard flat entries. They ensure maximum volumetric intake before radial acceleration begins, preventing cavitation at the intake zone.
Step 2: Kinetic Energy Transfer
The electric motor spins the internal impeller at extremely high RPMs. This rotation utilizes intense centrifugal force. It radially expels the trapped air molecules outward toward the edges of the blades. This aggressive physical action generates extreme velocity. The air mass gains massive kinetic energy in fractions of a second. The exact amount of kinetic energy transferred depends heavily on the diameter of the wheel and the operating speed of the motor.
Step 3: Bernoulli’s Principle in the Volute
The system now pushes high-velocity air into the snail-shell casing, known as the volute. This housing contains vaneless diffusers. The volute features a gradually increasing cross-sectional area. As the area expands, the moving air must decelerate. This deceleration converts the kinetic energy (velocity) directly into potential energy (static pressure). This physical conversion perfectly demonstrates Bernoulli's principle. It optimizes the adiabatic efficiency of the entire mechanical system.
Step 4: High-Pressure Discharge
The casing collects this heavily pressurized air. It forces the air toward the discharge port. The equipment expels the air at a precise 90-degree angle into the primary ductwork. This architectural shape ensures a higher velocity profile at the outer edge of the discharge port. The flow remains stable as it enters the piping system, ready to push against industrial filters, heating elements, or bulk materials.
Impeller geometry dictates the exact application suitability. You must match the blade shape to your environmental particulate load and pressure requirements. Deploying the wrong blade profile leads to immediate mechanical failure or massive energy waste.
Blade Geometry | Core Characteristic | Primary Industrial Applications | Major Trade-offs |
|---|---|---|---|
Forward-Curved | Cupped toward rotation | Commercial HVAC, clean room purifiers | Operates quietly, but highly sensitive to dust |
Backward-Curved / Aerofoil | Angled away from rotation | Industrial cooling, boiler forced draft | Maximum efficiency, higher manufacturing cost |
Radial / Radial Tip | Straight extending blades | Mining exhaust, sawmill material handling | Rugged and self-cleaning, but lower aerodynamic efficiency |
Inline Centrifugal | Tubular axial casing | Space-constrained commercial ducting | Highly compact footprint, strict lower pressure limits |
These blades cup deeply in the direction of the rotation. They excel in low-pressure, high-volume scenarios. Engineers specify them heavily for commercial HVAC systems, indoor air handlers, and large-scale air purifiers. They operate very quietly, moving large volumes of air at relatively low motor speeds. However, the cupped design acts like a shovel, making them highly sensitive to particulate buildup. Dust quickly accumulates in the cups, ruining their aerodynamic balance and destroying the motor bearings through vibration.
These blades angle sharply away from the direction of rotation. Aerofoil variants mimic airplane wings to reduce drag across the surface. They deliver high-efficiency, high-pressure performance without motor overload characteristics. You will find them heavily utilized in industrial cooling, forced draft combustion, automotive paint exhaust booths, and continuous-duty OEM equipment. They offer the highest energy efficiency and lowest noise profiles at extreme pressures. The primary trade-off remains their higher upfront manufacturing costs due to complex welding and balancing requirements.
Radial impellers feature straight blades extending directly from the central hub. Radial tip variants offer a slightly cupped edge at the outermost diameter. They dominate heavy industrial environments with severe particulate loads. Applications include material handling of sawdust, paper scraps, or metal shavings. They also handle mining gas extraction and pneumatic conveying of grain or plastic pellets. Pure radial impellers offer a rugged, self-cleaning design capable of surviving harsh impacts. Radial tip blowers provide a middle ground. They offer medium material handling capabilities alongside a slight boost in aerodynamic efficiency over pure straight blades.
These units place backward-inclined wheels inside enclosed tubular axial casings. They manage space-constrained routing where a standard 90-degree volute housing simply will not fit. Engineers use them for low-to-medium pressure ducting requirements. You typically see them mounted in interstitial spaces, tight ceiling plenums, or commercial kitchen exhaust risers. While they save space, they max out at lower pressure thresholds than traditional scroll-housed centrifugal units.
Selecting the wrong blower technology destroys system efficiency. You must understand the performance curves dictating each machine type. Failing to align the machine's curve with your system resistance curve guarantees operational failure.
Centrifugal units follow the Fan Laws. In this paradigm, maximum volume equates to maximum power consumption. As you open dampers and reduce resistance, the blower moves more air, which draws more amperage from the motor. They work best for variable airflow applications operating at stable pressures. They operate across well-defined pressure brackets. Low Pressure applications range from 0.2 to 1.0 PSI (3 to 28 inches H2O). Medium Pressure applications range from 1.0 to 4.0 PSIG (28 to 110 inches H2O). Standard operating ranges comfortably sit between 100 to 4,000 SCFM.
Regenerative blowers, or side channel blowers, follow pump curves. Here, maximum pressure equates to maximum power consumption. As you restrict the pipe, the pressure builds, and the motor draws more amperage. They excel at moving small volumes of air at extremely high, consistent pressures. They do not scale efficiently for high-volume ventilation needs, peaking around 1,000 SCFM before efficiency plummets.
Capacity sizing requires strict discipline. Always calculate the specific operating point where the system resistance curve intersects the blower performance curve. Size up the motor horsepower slightly for future process expansion. A system running constantly at 100% capacity wears out bearings rapidly and leaves no room for pressure spikes caused by dirty filters.
Heater alignment presents another major system risk. Caution against excessive oversizing when using inline heating elements. Pushing too much CFM through an inline heater prevents the system from reaching target process temperatures. The fast-moving air fails to absorb the necessary thermal energy as it passes over the heating coils.
Filtration dictates equipment longevity. Centrifugal blower lifespan mandates the use of reusable inlet filters in clean air applications. These intercept micro-particulates before they enter the volute. Unfiltered air quickly causes impeller imbalance. Just a few grams of uneven dust buildup leads to harmonic vibration, bent shafts, and premature bearing failure.
How the motor connects to the impeller determines maintenance schedules, power transmission efficiency, and footprint limitations. Material selection dictates chemical survival in harsh environments.

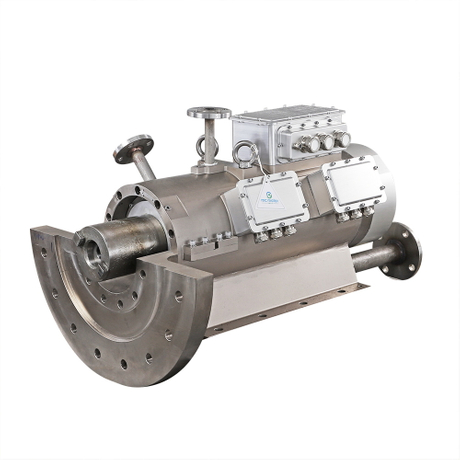

Direct drive systems mount the impeller straight onto the motor shaft. Modern designs utilize VFDs (Variable Frequency Drives) for precise variable-speed control. They pair with high-speed AC motors operating up to 330Hz. These units reach incredible speeds of 20,000 to over 40,000 RPM. They offer a highly compact footprint and zero power transmission loss. However, you must carefully manage electrical system harmonics with line reactors, ensure aggressive motor cooling, and account for dedicated VFD programming and wiring costs.
Belt drive configurations place the motor adjacent to the blower housing, connecting via pulleys and V-belts. They remain highly reliable and compatible with standard 50/60Hz industrial motors. They offer a significantly lower initial cost. They simplify on-site maintenance procedures for facility technicians, allowing easy RPM adjustments by simply changing pulley sizes. Crucially, they avoid the extreme thermal issues associated with ultra-high RPM direct drive setups. The trade-off is regular maintenance to check belt tension and replace worn sheaves.
Material dictates environmental survival. Do not cut costs on casing metallurgy in corrosive environments. Specifying cheap materials in harsh chemical plants leads to rapid casing degradation and dangerous gas leaks.
Aluminum: Extremely lightweight and spark-resistant. It offers a solid baseline for corrosion resistance in standard moisture applications. It dominates standard HVAC and cleanroom applications.
Stainless Steel: Provides high tensile strength and sanitary compliance. It offers supreme chemical and corrosion resistance. It is mandatory for petrochemical plants, acidic environments, and pharmaceutical sterilization lines where aggressive washdowns occur.
Cast Iron and Heavy Gauge Carbon Steel: Delivers maximum physical durability. It withstands heavy, abrasive industrial applications where particulates impact the casing constantly. Operators often apply specialized epoxy or PTFE coatings to carbon steel to combine strength with chemical resistance.
Even perfectly manufactured equipment fails if installed poorly. Precise calculations, rigid pipe sizing, and strict acoustic topologies prevent site failures and safety hazards.
Accurate spec-building requires strict math. You must not guess airflow requirements. You must outline the exact target space volume. Calculate the necessary Air Changes Per Hour (ACH). Measure the total pipe length from intake to exhaust. Finally, calculate the cumulative system friction and resistance caused by elbows, filters, and dampers.
Use the standard formula to determine your baseline CFM (Cubic Feet per Minute):
CFM = (Room Volume in Cubic Feet × Target ACH) / 60
For example, a manufacturing floor measuring 20,000 cubic feet requiring 8 air changes per hour demands 2,666 CFM just to meet baseline ventilation requirements. Once you know the CFM, you calculate the static pressure drop across every foot of ducting to find your final operating point.
Attaching high-CFM blowers to undersized piping creates severe risks. Forcing high volumes of air through 4-inch or 6-inch ducts causes exponential static pressure spikes. Air encounters extreme fluid friction against the pipe walls. This massive fluid friction rapidly overheats the drive motor as it struggles to push the air mass. In commercial exhaust applications, this pressure traps hazardous fumes or heavy grease inside the walls. This creates critical fire risks and violates building codes.
Engineers must calculate equivalent duct lengths for every fitting. A standard 90-degree elbow creates the same friction as 10 to 15 feet of straight pipe. Ignoring these fittings results in severely undersized blower specifications.
Installations must feature robust structural support. Securing the blower to a rigid steel frame prevents operational torque from warping the motor casing. Precise structural alignment using laser measurement mitigates harmonic vibration from traveling across the concrete floor.
Placement locations change the acoustic footprint. Local installations place the blower near the operator, generating internal noise that requires hearing protection. Inline installations place the unit in an attic or interstitial space, offering a quiet work zone below. Roof-mounted configurations vary based on discharge direction. Upblast models expel grease and toxins forcefully upward, away from the roof surface. Downblast models push clean air down toward the deck, keeping rain out of the ductwork.
Noise mitigation requires proactive engineering. Proper volute sizing prevents internal air turbulence. Tight casing seals prevent high-pitched whistling. Install high-grade rubber or spring vibration isolators under the base frame to dampen acoustic output before it reaches the building structure.
Wiring a three-phase motor backward causes catastrophic operational effects. The impeller spins in reverse. External air pushes toward the center instead of expanding outward radially. This creates a massive low-pressure void at the discharge port. The result is an instant efficiency collapse; the unit will only move a fraction of its rated airflow. The unit generates extreme aerodynamic noise and suffers unbalanced harmonic vibration that can shatter bearings in a matter of hours.
Standard centrifugal blowers remain highly dangerous in flammable atmospheres. Motors generate sparks, and standard carbon steel casings spark when struck by metallic debris. You must specify ATEX-certified or Explosion-Proof (XP) motors for volatile zones. You require non-sparking enclosures (like aluminum or specialized AMCA spark-resistant alloys) for chemical processing. You must strictly adhere to OSHA 1910.146 regulations for confined space ventilation to prevent fatal gas accumulation or facility explosions.
Equipment sourcing dictates project success. Avoid vendors who simply push off-the-shelf catalog items without analyzing your total system resistance. A blower that looks good on paper will fail in the field if the manufacturer ignores your specific ducting architecture.
Customization and Testing Protocols: A reputable Centrifugal Blower manufacturer must offer bespoke pressure and volume configurations. They should not rely solely on rigid SKUs. They must match the exact process resistance of your specific pipeline architecture by adjusting impeller diameters and motor speeds.
Fan Performance Calculation Capabilities: Evaluate the vendor's internal engineering support rigorously. They must calculate precise Fan Laws prior to fabrication. Ask them to prove their adiabatic efficiency models. They must demonstrate a thorough understanding of your system resistance calculations and provide a plotted performance curve showing your exact operating point.
Quality Certifications and Post-Sale Support: Look for strict ISO manufacturing certifications. Demand documented vibration and balance testing standards before the unit ships from the factory. Ensure they integrate thermal overload protection in the supplied control panels. Finally, verify their MRO (Maintenance, Repair, and Operations) support. They must provide rapid assistance for impeller re-balancing, spare parts access, or emergency bearing replacement.
The correct centrifugal blower relies on mapping exact operational resistance against required airflow. You must leverage Bernoulli's principle to stabilize industrial processes efficiently. Shortlist your final specifications based on particulate presence, available footprint, and environmental volatility. Execute the following actions to secure the right equipment for your facility.
Audit your current static pressure tolerances across all major ductwork routes.
Map your required SCFM against pipeline friction calculations to prevent motor burnout.
Specify your drive type based on your facility's internal maintenance capacity and budget constraints.
Identify all volatile gases or dust to mandate specific explosion-proof ratings.
Consult with specialized engineering teams to generate accurate performance curves for your distinct application.
A: A device is classified as an industrial blower if it generates a pressure ratio exceeding 1.2 mg/cm². Standard fans use propellers to push air 180 degrees but fail under resistance. Centrifugal blowers use impellers to pull air and redirect it 90 degrees, overcoming severe static pressure in complex ductwork.
A: Reverse rotation pushes external air toward the center, creating a massive low-pressure void at the discharge port. This causes a total efficiency collapse, generates extreme internal noise, and triggers violent harmonic vibrations that rapidly destroy motor bearings and warp the drive shaft.
A: Noise reduction requires backward-curved blade geometries, which operate aerodynamically smoother. You must ensure proper casing sizing to prevent internal air turbulence. Additionally, install heavy-duty rubber vibration isolators on the mounts and seal all casing leaks to eliminate acoustic whistling.
A: Backward-curved blades provide maximum energy efficiency and generate higher pressures with low noise profiles. Radial blades are less aerodynamically efficient but feature a rugged, straight-blade design that handles heavy material transport, like sawdust or abrasive metal shavings, without accumulating debris.
A: Standard models cannot be used in explosive environments because standard motors and steel casings can generate sparks. You must mandate ATEX-certified, explosion-proof motors paired with AMCA non-sparking casing materials, strictly following OSHA guidelines for hazardous and confined spaces.
A: Routine maintenance includes aggressive bearing lubrication and checking belt tension for wear. You must regularly clean or replace reusable inlet filters to prevent impeller imbalances. Finally, inspect the inlet and outlet ducting for restrictive material obstructions that cause pressure spikes.
