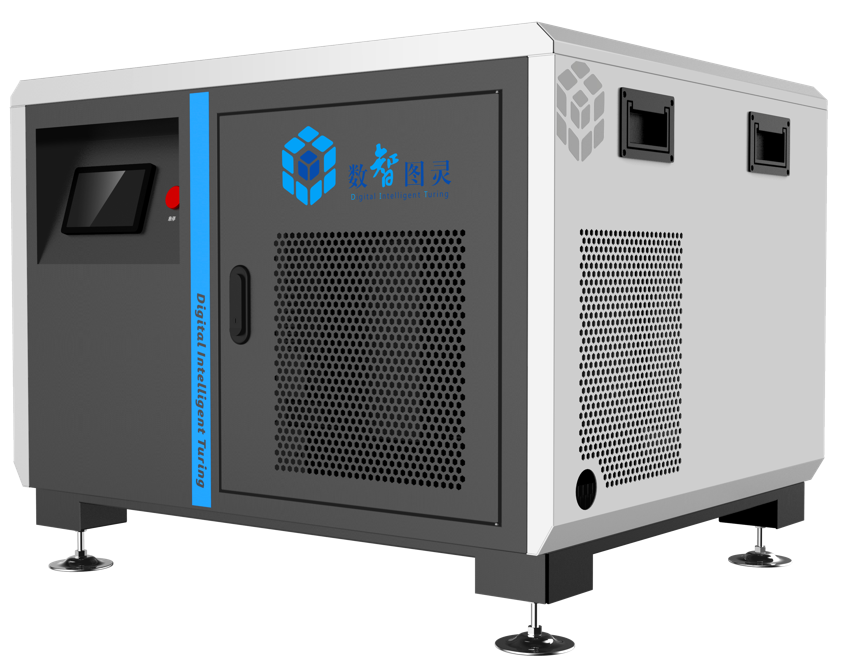

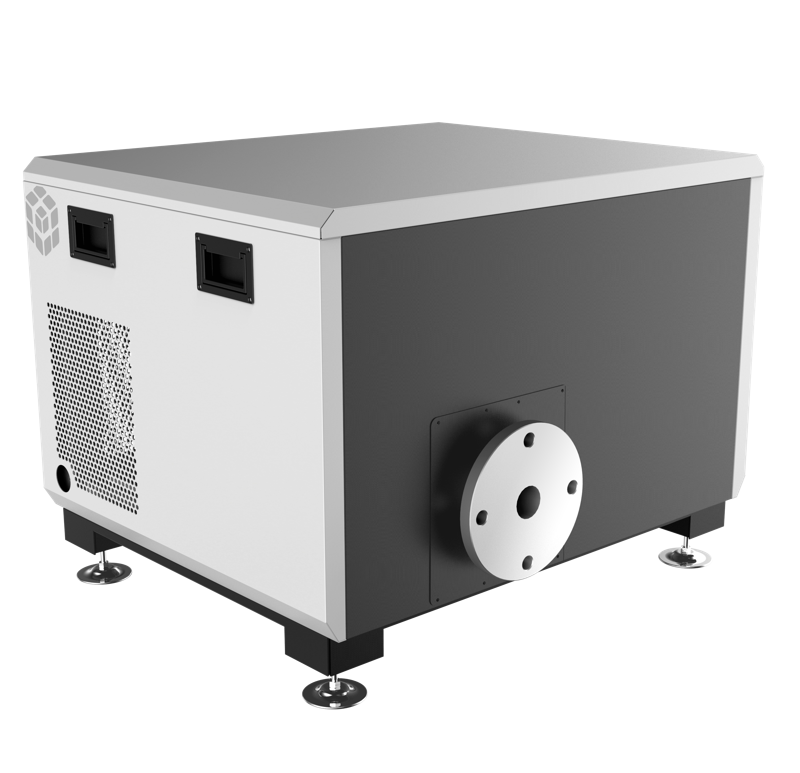

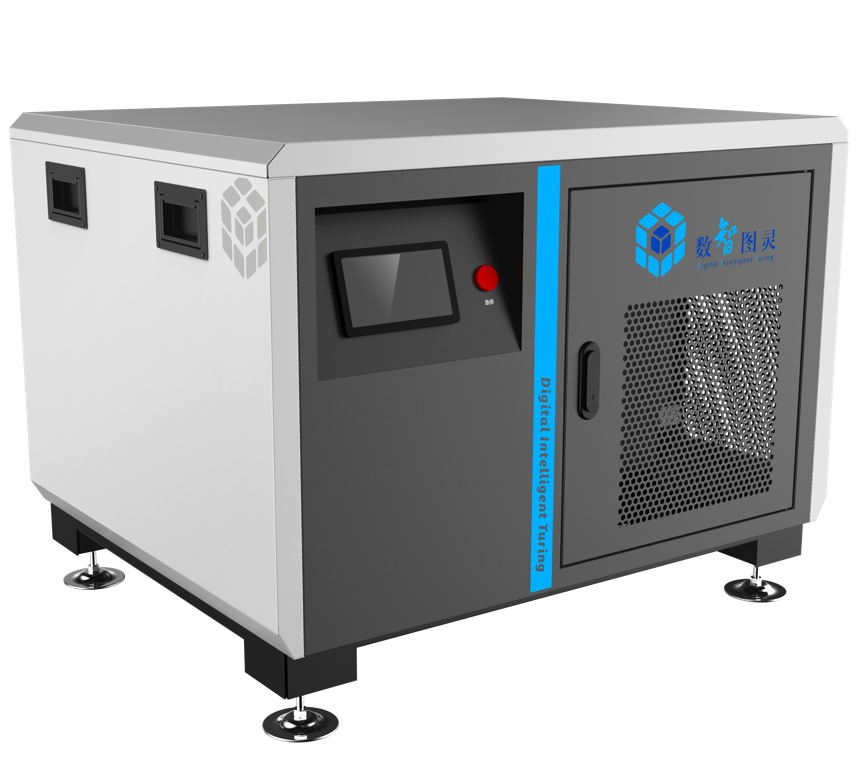

30kpa High Speed Turbo fan for Industrial application

Model type:DIN-INT-R18-P6-37
Voltage: 380-400V AC
Rated Power: 37KW
Rated Speed:up to 18000rpm
Pressure: 5-30kpa
Flow rate:6180-4200m3/hour
Weigh:245kgs
Flange:DN250
Dimension: 900*900*960mm

Model:
DIN-INT-R18-P6-37
Brand:
DIT

Availability:

Quantity:



Inquire Add to Basket

high speed industrial centrifugal fan high speed industrial centrifugal blower high speed direct drive centrifugal fan high efficiency centrifugal fan high speed turbo centrifugal fan high speed radial fan variable speed centrifugal fan

Product Description

37Kw 30Kpa high speed turbo blower for electro-plating industry with 95% efficiency

Digital Intelligent Turing turbo blower is an efficient, and environmentally sustainable product providing end users with significant reductions in operating costs through energy savings of up to 40% (according to a third party study).
The blower was installed with mingcheng own designed/manufactured PMSM. We Minimize current loss and the motor can operate continuously at high speed, with an efficiency of more than 95%.
Work together with both Chinese top blower institute and industry customers, our impellersare designed by tri-variate movement theory with high efficiency to achieve a balance between large air flow and high pressure. The impeller was made of high strength forged aerospace Aluminum so top anti-corrosion and long life durability are realized

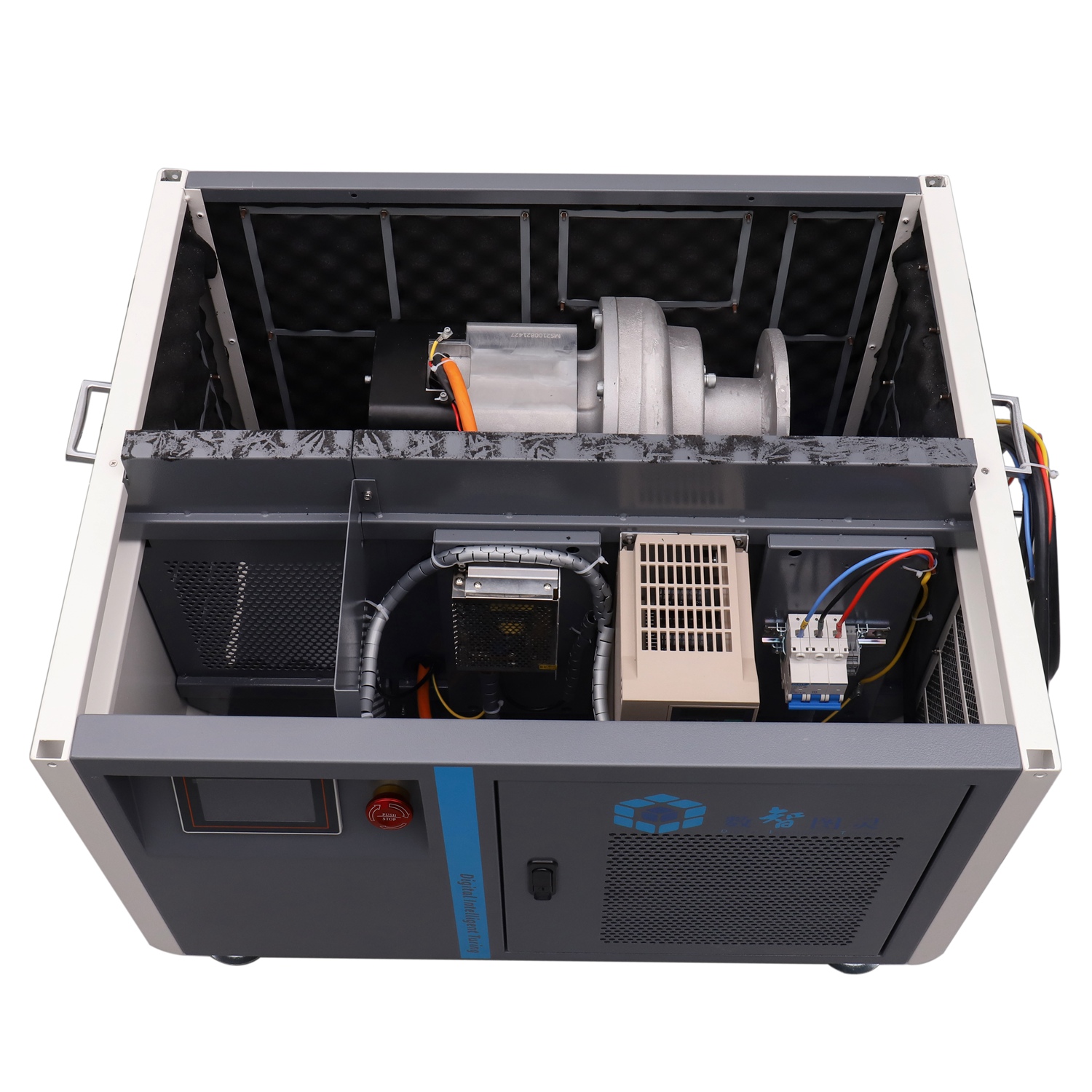

Our own blower cabinet so the inlet gas will go through the motor and controller to cool them down.

Thanks to the compact design, our product can easily be installed in small spaces with low installation and maintenance costs - only air filters need periodical cleaning or changing. Other important benefits include much lower noise and vibration, durability, and reliability.

Product Description

1.Motor speed up to 18000rpm, motor efficiency achieve 96%.
2.Operation Efficiency 90%,Efficiency of flower channel is over 80%
3.Simulation Technology Capability
4.Low noise low vibration
5.Patented cabenit cooling structure
6.Replacing root blower

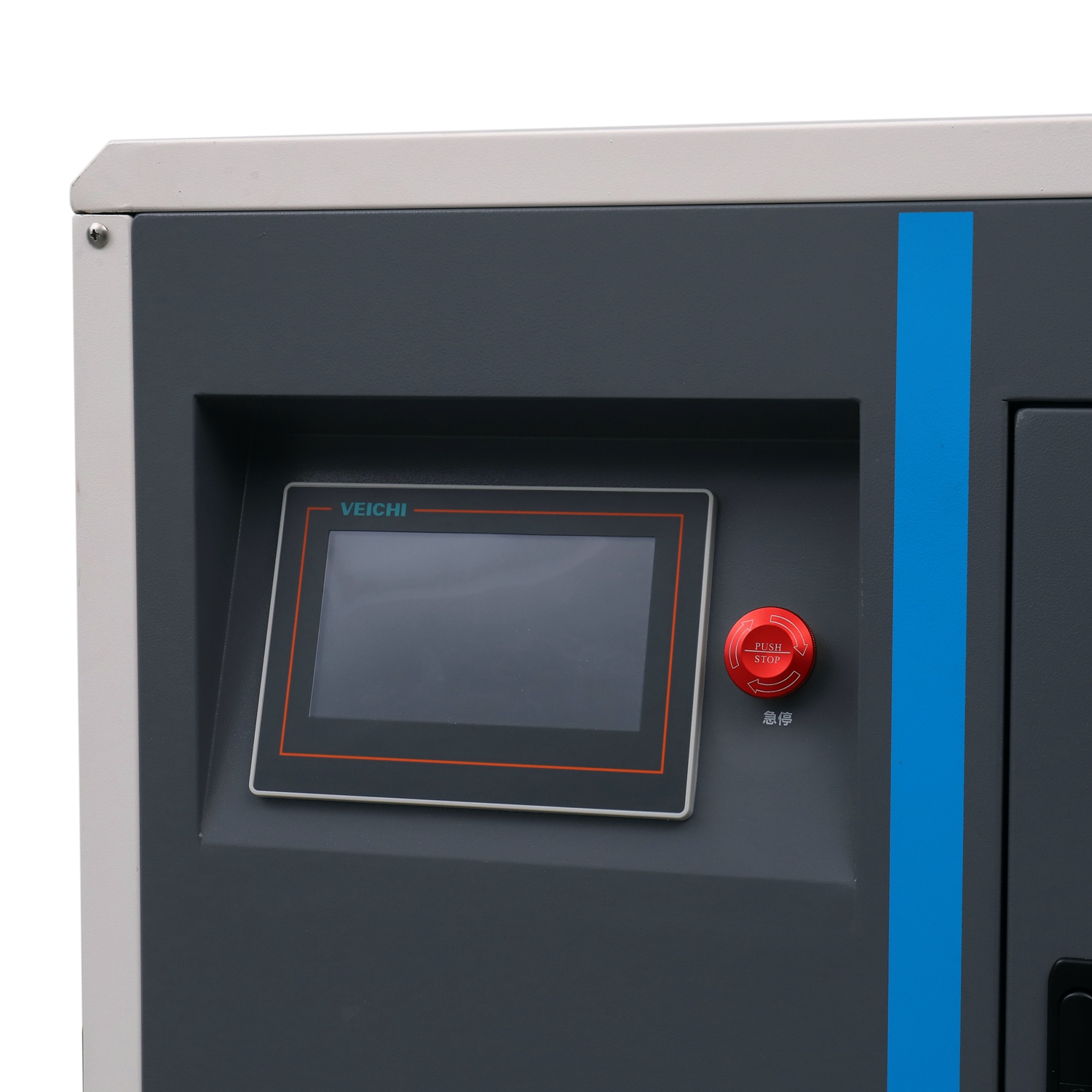

7. Touch screen, easy operation

Product Parameters

Model type:DIN-INT-R18-P6-37
Voltage: 380-400V AC
Rated Power: 37KW
Rated Speed:up to 18000rpm
Pressure: 5-30kpa
Flow rate:6180-4200m3/hour
Weigh:245kgs
Flange:DN250
Dimension: 900*900*960mm

Packaging & Shipping

SHIPPING

1.Wooden / paper carton optional (price will be different)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requests are confirmed
Shipping direction
1. Sample order: our stock cargoes L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3.By Air we normally take DHL/UPS/FEDEX/TNT or other door to door service.
4. By Sea: LCL/FCL are both OK.

Payment Method:
1.We accept T/T, WESTERN UNION, PAYPAL , L/C at sight
2. 30% deposit, 70% before shipping (Amount more than 5000USD)

Other Models

No	Model#	Spec	Pressure Kpa	Air flow m3/H	Dimension (mm)	Weight (KG)	Flang (DN)

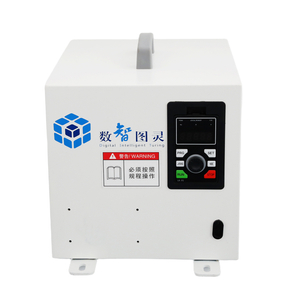

1	DIN-INT-R26-P4-1.5A	380-400V,1.5KW	15	300	567x300x377	25	OD Ø78
1	DIN-INT-R26-P4-1.5B	380-400V,1.5KW	20	200	567x300x377	25	2'' Outer thread
2	DIN-INT-R18-P3-2.2	380-400V,2.2KW	13	300	701x360x405	33	OD Ø78
3	DIN-INT-R20-P5-3	380-400V,3KW	25	350	701x360x405	33	OD Ø78
4	DIN-INT-R20-P7-4.0	380-400V,4kW	35	600	800x650x610	75	DN80
5	DIN-INT-R22-P9-5.5	380-400V,5.5kW	45	840	580x510x550	61	DN80
6	DIN-INT-R24-P5-7.5	380-400V,7.5kW	25	1200	800x650x610	75	DN80
7	DIN-INT-R24-P6-7.5	380-400V,7.5kW	30	1140	800x650x610	75	DN80
8	DIN-INT-R24-P10-7.5	380-400V,7.5kW	50	1140	800x650x610	75	DN80
9	DIN-INT-R24-P6-11	380-400V,11kW	30	1320	800x650x610	80	DN80
10	DIN-INT-R17-P5-15	380-400V,15kW	25	1800	900x780x800	125	DN150
11	DIN-INT-R20-P6-22	380-400V,22kW	30	2400	900x780x800	125	DN150
12	DIN-INT-R20-P6-30	380-400V,30kW	30	2700	900x780x800	126	DN150
13	DIN-INT-R21.5-P9-30	380-400V,30kW	45	2700	900x780x800	128	DN150
14	DIN-INT-R18-P6-37	380-400V,37kW	30	4800	900x900x950	245	DN250
15	DIN-INT-R18-P6-45	380-400V,45kW	30	5400	900x900x950	250	DN250
16	DIN-INT-R15-P5-55	380-400V,55kW	25	6600	900x900x950	265	DN300
17	DIN-INT-R16-P7-75	380-400V,75kW	35	9600	1580x1150x1160	475	DN300
