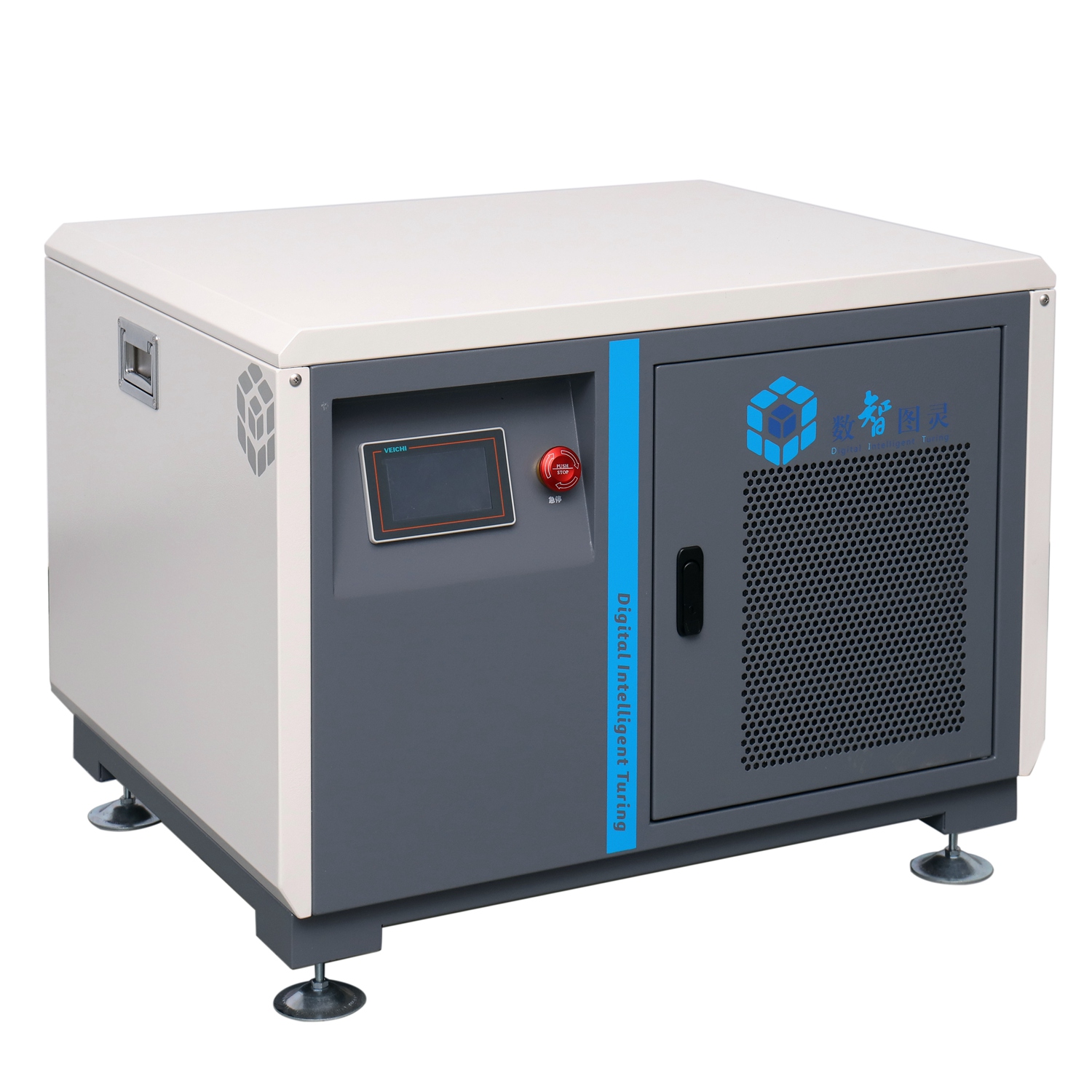

Thanks to the compact design, our product can easily be installed in small spaces with low installation and maintenance costs - only air filters need periodical cleaning or changing. Other important benefits include much lower noise and vibration, durability, and reliability.

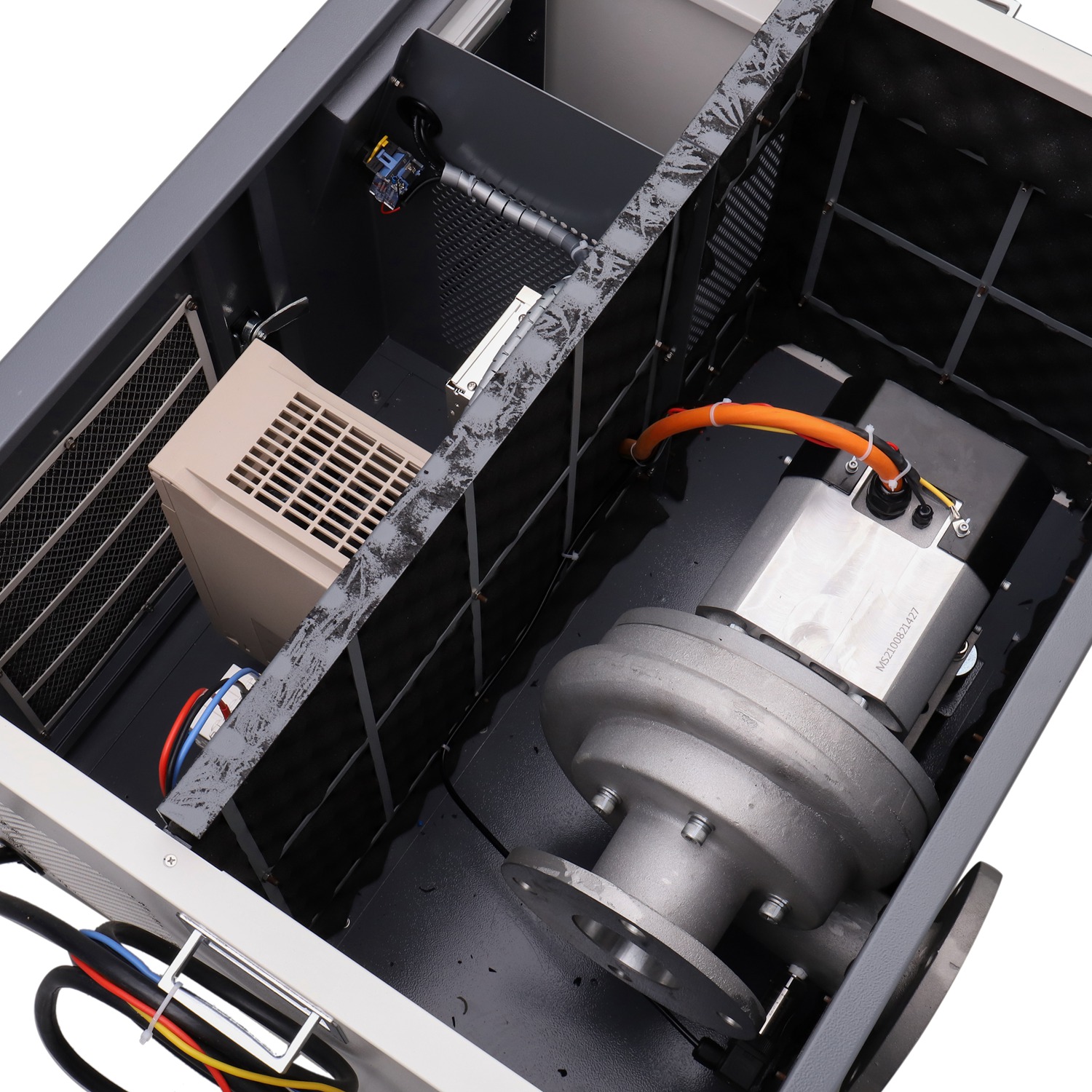

The blower was installed with our own designed/manufactured PMSM. We Minimize current loss and the motor can operate
continuously at high speed, with an efficiency of more than 95%.
1.Motor speed up to 20000rpm, motor efficiency achieve 96%.
2.Operation Efficiency 90%,Efficiency of flower channel is over 80%
3.Simulation Technology Capability
4.Low noise low vibration
5.Patented cabenit cooling structure
6.Replacing root blower
Product Parameters
Model type: DIN-INT-R20-P6-30
Voltage: 380-400V AC
Rated Power: 30KW
Rated Speed:up to 20000rpm
Pressure: 20-50kpa
Flow rate:2580-2040m3/hour
Weigh:126kgs
Flange:DN150
