Views: 0 Author: Site Editor Publish Time: 2026-05-27 Origin: Site
Industrial blowers represent a massive financial burden for facility operators. In demanding operational sectors, these systems regularly consume 40 to 80 percent of a plant’s total electrical power. Choosing an improper equipment type or over-specifying capacity directly leads to escalating lifecycle costs. In these scenarios, long-term energy expenditure rapidly eclipses the initial capital investment. Plant managers must prioritize mechanical efficiency over immediate procurement savings.
This technical evaluation details industrial blower classifications. We disambiguate complex aerodynamic mechanisms and map specific systems to their optimal applications. You will learn how to evaluate specific pressure capabilities, calculate actual system resistance, and navigate atmospheric variables. We provide actionable engineering protocols to help you specify the exact equipment required, minimize parasitic energy waste, and drastically reduce total ownership costs.
Lifecycle Cost Reality: CAPEX typically accounts for only 10% of a blower’s total lifecycle cost, while energy and maintenance (OPEX) account for 90%.
Pressure Distinctions: Blowers occupy the specific pressure capabilities between standard fans (low pressure, high volume) and compressors (high pressure, low volume).
Centrifugal Dominance: Centrifugal blowers provide highly adaptable, high-pressure solutions via distinct impeller designs, making them the industry standard for scalable operations.
Sizing Precision is Mandatory: Accurate specification requires calculating system resistance, atmospheric conditions (altitude/density/humidity), and necessary turn-down capability to avoid wasteful over-design.
Engineers categorize air-moving equipment strictly by specific pressure ratio. This ratio defines the discharge pressure divided by the suction pressure. Standard fans move large volumes of air at extremely low pressure, typically operating with a specific ratio under 1.11. Compressors achieve massive pressure ratios exceeding 1.20 but handle very low initial air volumes. Industrial blowers sit precisely between these two aerodynamic extremes. They generate moderate pressure ratios from 1.11 to 1.20 while maintaining substantial volumetric flow.
The term "blower" frequently creates confusion across different commercial markets. Consumers use the word to describe residential leaf blowers or automotive engine cooling components. Contractors reference light-duty HVAC units. We isolate our focus entirely on heavy-duty industrial blowers. These robust machines serve critical infrastructure roles. They move hazardous gases, force air into chemical tanks, and drive bulk materials through pneumatic pipelines.
The core engineering objective of an industrial blower remains constant. The equipment must transition air from a low-pressure state to a high-pressure state to overcome system resistance. Standard fans merely circulate ambient air within a room. Blowers force compressed air through dense materials, complex restrictive ducting, or heavy columns of liquid.
Modern centrifugal blowers dominate the industrial landscape. They rely on kinetic energy to build intense air pressure. You can visualize the core mechanism as a high-speed hamster wheel. The system draws ambient air into the center of a rotating impeller. Centrifugal force throws this air outward at a strict 90-degree angle into a specialized volute casing. This expanding casing slows the air down, converting kinetic velocity into static pressure.
Six critical components facilitate this energy transfer: inlet ducts, an outer casing, aerodynamic impeller blades, an electric motor, a high-tensile rotor shaft, and a structured outlet. A standard unit typically operates within a baseline of 100 to 4,000 SCFM (Standard Cubic Feet per Minute) and delivers pressures ranging from 0.2 to 4.0 PSI. Custom high-speed configurations push these operational limits much further for specialized industrial processes.
The internal impeller design dictates the overall aerodynamic efficiency of the machine. Engineers select specific blade profiles based on environmental severity and particulate concentration.
Impeller Design | Blade Geometry | Aerodynamic Efficiency | Particulate Tolerance | Primary Application |
|---|---|---|---|---|
Radial | Straight outward from hub | Low (55% - 65%) | Extremely High | Material handling, heavy dust exhaust |
Backward-Curved | Sweeps away from rotation | High (75% - 85%) | Moderate | Industrial ventilation, forced draft |
Forward-Curved | Curves toward rotation | Moderate (60% - 70%) | Low | Compact HVAC units, clean air |
Airfoil | Tear-drop wing profile | Peak (85%+) | Zero | Clean room ventilation, large base load |
Radial Blades: These blades extend straight outward from the hub. They offer the lowest aerodynamic efficiency but deliver unmatched mechanical durability. Their wide spacing provides excellent self-cleaning capabilities. This design handles heavy particulates, raw materials, and dirty air flawlessly without stalling.
Backward-Curved Blades: The blades sweep away from the direction of rotation. This geometry provides much higher peak efficiency and pressure than radial blades of the same physical diameter. They generate lower mechanical noise and produce virtually zero air turbulence.
Forward-Curved & Airfoil Blades: Forward-curved designs prioritize maximum airflow within compact physical spaces. Airfoil blades mimic commercial airplane wings. They offer the absolute highest operational efficiency, but they strictly require perfectly clean-air environments to prevent blade degradation.
Turbo Impellers: This specialized design utilizes forward-curved inducers at the blade inlet. These pair with a specifically expanding diameter volute housing. Turbo impellers deliver massive peak efficiency ratios, though they feature a narrow optimal operating range.
Some chemical processes demand exceptionally high pressure without requiring extreme air volumes. Multistage designs solve this aerodynamic problem. They integrate multiple rotating impellers in series within a single, elongated cast-iron housing. As air moves from one impeller stage to the next through engineered return channels, the static pressure multiplies exponentially. This allows plant operators to achieve massive pressure outputs from a relatively standard motor footprint.
Connecting the electric motor to the blower impeller requires precise engineering calculation. Facilities must weigh upfront installation costs against long-term mechanical maintenance realities.
Direct Drive: The motor shaft connects directly to the impeller hub. This creates a very compact physical footprint. Variable Frequency Drives (VFDs) push these modern units up to 40,000+ RPM. Trade-offs include higher initial capital costs and severe internal heat generation. They require dedicated liquid cooling systems and present highly challenging field repair scenarios.
Belt Drive: This classical system operates via standardized pulley transmission. It remains highly tolerant of harsh, high-heat ambient environments. Operators face continuous mechanical transmission losses due to belt friction and slippage. However, routine on-site maintenance is significantly easier. Facilities use standard off-the-shelf motors that avoid extreme RPMs, drastically prolonging equipment bearing life.
Positive Displacement (PD) blowers utilize a completely different physical mechanism to move gas. They rely on the mechanical "pocketing" of air. The machine's inlet port expands to capture a specific air mass. The internal rotor cavity then turns, trapping the gas, and the outlet contracts to force it into the pipe. This captures a fixed, measurable volume of air per mechanical rotation. Unlike centrifugal models, PD blowers deliver constant volumetric airflow regardless of intense fluctuations in system back-pressure.
The classic rotary lobe design features dual counter-rotating lobes. They resemble a massive metal figure-eight spinning tightly inside a machined casing. These units are ideal for moderate-to-low flow applications requiring absolute flow reliability and deep industrial vacuum capabilities.
However, lobe blowers face distinct aerodynamic limitations. They lack internal compression. Gas only compresses when it meets the resistance of the discharge pipe. This creates poor mechanical efficiency at higher operating pressures due to air slipping back across the rotor gaps. They also generate severe acoustic noise, heavy air pulsation, and continuous mechanical vibration that requires specialized dampening.
Engineers developed the modern helical screw blower to resolve the basic lobe design's inefficiencies. This system features interlocking primary and secondary asymmetrical screw rotors. Precision timing gears ensure the metal rotors never actually touch. The internal casing cavity gradually decreases the trapped air volume before discharge, achieving true internal compression.
This design holds major operational advantages over traditional lobe blowers. Operators gain moderate-to-high volumetric efficiency and significantly quieter operation. Tighter internal machine tolerances drastically reduce air slip and minimize parasitic energy loss. The primary trade-off involves higher factory maintenance costs, as specialized Polytetrafluoroethylene (PTFE) rotor coatings inevitably degrade over continuous operational time.
Modern high-speed turbo blowers represent the current peak of industrial air-movement technology. These advanced direct drive systems feature permanent magnet synchronous motors. They integrate seamlessly with complex microprocessor VFDs. Plant managers utilize them to push massive clean air volumes at discharge pressures up to 25 PSI.
Physical friction ultimately destroys high-speed rotating machinery. Magnetic bearing blowers eliminate metal-on-metal friction entirely. Active electromagnets suspend the heavy motor rotor in mid-air during both operation and standstill phases. Precision sensors monitor shaft positioning thousands of times per millisecond to adjust the magnetic field.
Implementing this delicate technology carries strict operational risks. The system is incredibly sensitive to momentary grid power outages. Facilities must install robust Uninterruptible Power Supply (UPS) battery backups. They also require emergency mechanical "landing bearings" to prevent catastrophic rotor crashes during complete power failures. Furthermore, the sensitive logic controllers remain highly vulnerable to high ambient plant temperatures.
Air bearing technology offers a more mechanically resilient alternative to electromagnets. The rapidly rotating shaft naturally generates a pressurized air cushion within its journal. This entirely eliminates physical friction without utilizing complex magnetic controllers. Manufacturers often implement lightweight titanium alloy shafts and precision-machined aluminum impellers coated with advanced nano-materials.
This implementation proves highly reliable in continuous-duty cycles. The system is 100 percent mechanically self-controlled and fully immune to catastrophic power grid failures. Operators enjoy minimal routine maintenance requirements. Air bearing units boast excellent isentropic efficiency ratings compared to traditional integral gear models.
Not all industrial applications require crushing static pressure. Certain processes demand specialized volumetric airflow profiles for sensitive material handling, precise drying, or rapid exhaust.
Axial aerodynamic mechanisms include basic propeller, tube-axial, or specialized vane-axial designs. They pull ambient air straight through the cylindrical housing, keeping the flow strictly parallel to the central motor shaft. They function much like standard residential fans, scaled up for industrial environments.
These units face severe operational limitations in complex ducting. They require very low system static pressure. They generate massive volumetric flow rates, but they cannot push against dense ductwork resistance. Critically, axial fans cannot generate sufficient vacuum suction or discharge pressure. This aerodynamic reality makes them entirely unsuitable for pneumatic material conveying.
Regenerative blowers function as continuous non-positive displacement machines. A rapidly rotating impeller pushes air outward against the toroidal casing wall. The internal geometry loops the air back down to the base of the rotating blade continuously. This localized regenerative loop builds steady pressure over a long rotational cycle.
These specialized units utilize completely oil-free construction. Low physical maintenance makes them ideal for sensitive, low-pressure applications requiring high-volume continuous operation. Medical air settings, electronic clean rooms, and automated food packaging lines rely heavily on this clean technology.
Industrial deployment environments dictate the external physical requirements of the blower. Selecting an incorrect form factor or casing material leads to rapid equipment destruction or serious plant safety hazards.
Facilities handling volatile gases must strictly utilize explosion-proof blowers. These machines feature non-sparking metal casings, usually aluminum or brass, and fully enclosed fan-cooled motors. They ensure total compliance with stringent OSHA standards and ATEX safety directives. Environments containing combustible organic dust or explosive chemical vapors require these specialized housings to prevent catastrophic facility ignition.
Heavy construction and remediation sectors require highly mobile and dust-filtered units. These utilize heavy-duty, high-resistance polyethylene housings. They frequently equip localized dust-bag filtration integrations. Operators deploy these resilient floor blowers during structural demolition, subterranean trenching, or severe flood restoration projects to maintain safe breathable air volumes.
Strict thermal limitations also dictate installation location planning. Electric motors generate immense internal heat during continuous base-load operation. Facilities must place specific blowers in highly ventilated mechanical rooms. Ambient room temperatures must remain safely under 104°F (40°C). Exceeding this thermal threshold guarantees premature Class F or H insulation degradation and eventual motor failure.
Different industrial sectors demand unique aerodynamic performance profiles. Matching the blower mechanism to the exact chemical or physical application drastically improves daily production metrics.

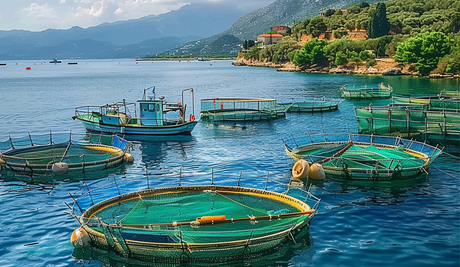

Water-Treatment and Aquaculture: Municipal facilities and large-scale aquaculture farms demand continuous deep-basin aeration. They must manage dissolved oxygen levels perfectly to sustain biological degradation processes. The optimal solution involves high-speed air-bearing turbo blowers or multistage centrifugal units. These offer maximum turn-down capability. Operators can precisely scale airflow based on fluctuating biological oxygen demand. They provide extreme static pressure tolerance and generate massive long-term energy savings for continuous water-treatment infrastructure.
Mining and Heavy Extraction: Deep subterranean operations require aggressive, continuous exhaust management. Underground mining facilities must extract lethal silica dust, toxic equipment fumes, and combustible methane gases from enclosed shafts. The optimal solution requires radial-blade centrifugal models and specialized explosion-proof axial systems. Radial blades offer unmatched operational durability against abrasive stone particulates. Their self-cleaning geometry prevents dangerous internal rotor clogging during heavy extraction phases.
Agriculture and Food Processing: Modern agriculture relies heavily on the pneumatic conveying of delicate grain, heavy seeds, or dense powdered ingredients. Facilities also use high-velocity air knife systems for gentle produce drying processes. The optimal solution relies on positive displacement blowers. PD units excel at dense-phase conveying, which strictly requires constant air volume to prevent catastrophic pipeline blockages. Alternatively, regenerative blowers provide perfect oil-free air for sensitive food-grade processing.
Building Service and HVAC: Large commercial high-rise complexes demand centralized exhaust capabilities, massive duct pressurization, and precise tenant climate control. The optimal building service solution utilizes forward-curved centrifugal blowers and inline vane-axial fans. These robust machines are uniquely capable of overcoming the extensive static resistance generated by miles of centralized sheet-metal ductwork.
Proper equipment specification completely protects your capital investment. Engineering teams must move past simple horsepower ratings. You must evaluate complex operational flow curves and harsh environmental variables.
Blower Classification | Volume Delivery Type | Mechanical Efficiency | Maintenance Profile | Ideal Industrial Use Case |
|---|---|---|---|---|
Positive Displacement (Lobe) | Constant Volume | Low to Moderate | Moderate (Oil changes, belt tensioning) | Dense pneumatic conveying, deep vacuum systems |
Centrifugal (Backward-Curved) | Variable Volume | High | Low (Direct drive reduces mechanical wear) | Wastewater aeration, heavy central duct exhaust |
Air Bearing Turbo | Variable Volume | Extremely High | Minimal (Frictionless shaft operation) | High-capacity continuous basin aeration |
Regenerative Blower | High Volume / Low Pressure | Moderate | Minimal (Oil-free internal components) | Automated food packaging, medical air systems |
Accurate airflow and static pressure calculations form the baseline of any technical evaluation. Engineers must match exact SCFM requirements against rigorously measured system resistance. This specific resistance usually displays in millimeters of water column (mmWC) or standard Pascals. You must clearly differentiate between static pressure, which is the physical resistance of the pipe walls, and dynamic pressure, which represents the kinetic energy of the moving air.
Understanding operational performance curves is absolutely paramount. Centrifugal blowers strictly follow a standard fan curve. Their volumetric flow physically drops as system back-pressure increases. Conversely, PD blowers follow a rigid pump curve. They deliver constant air volume regardless of severe pressure spikes. You must map your facility's operational needs directly to the correct geometric curve.
Operators must heavily prioritize turn-down capability. Industrial systems rarely run at 100 percent capacity around the clock. Turn-down evaluates how well the specific machine maintains electrical efficiency when operating far below peak output. Utilizing modern VFDs provides vastly superior electrical turn-down compared to mechanically restricting airflow via traditional Inlet Guide Vanes.
Environmental variables easily destroy expected equipment performance. Facility altitude, local humidity, and air density dynamics drastically alter aerodynamic outcomes. Blowers experience severe performance degradation at high geographic altitudes due to thinner air mass. High ambient humidity also displaces oxygen molecules, effectively reducing overall air density. You must calculate Actual Cubic Feet per Minute (ACFM) and adjust your volumetric capacity specifications upward to compensate for these strict environmental realities.
Finally, facilities must navigate strict acoustic and environmental compliance protocols. Heavy industrial blowers generate deafening mechanical noise. Ensuring operation safely under the 85dB OSHA threshold requires advanced acoustic engineering. Facilities often implement external pipe silencers or heavy sound-dampening enclosures. Additionally, operators must verify physical material compatibility, selecting stainless steel or specific coatings when handling corrosive exhaust or highly abrasive gases.
Audit your facility's current ductwork dimensions to calculate exact system static and dynamic resistance metrics.
Measure maximum ambient room temperatures and geographic altitude to correct required ACFM and air density parameters.
Map an accurate system performance curve directly to your fluctuating operational demands to determine if variable or constant volume is required.
Evaluate the financial return on investment of installing a VFD-equipped direct-drive system to maximize daily turn-down efficiency.
A: A centrifugal blower uses kinetic energy and a spinning impeller to push air outward, delivering variable volume based on system pressure. A Roots blower is a Positive Displacement machine. It uses rotating lobes to trap and move fixed pockets of air, delivering constant volume regardless of pipe pressure changes.
A: High altitude and elevated humidity physically decrease overall air density. Because centrifugal blowers move a set volume of air per revolution, moving less dense air drastically reduces the actual mass flow and discharge pressure output. You must oversize the blower's volumetric capacity to compensate.
A: Air-bearing turbo blowers eliminate physical metal friction entirely. The rotating shaft glides smoothly on a cushion of pressurized air. This removes energy-wasting mechanical gears, drive belts, and complex oil lubrication systems, allowing the permanent magnet motor to transfer electrical power directly to the impeller.
A: Positive Displacement (PD) blowers, such as rotary lobe or helical screw types, are ideal for pneumatic conveying. They provide constant air volume. This steady mechanical flow prevents heavy bulk materials from settling and creating catastrophic blockages inside the conveying pipeline during unexpected pressure spikes.
A: Axial fans are engineered to move large volumes of ambient air at very low pressure. They lack the internal aerodynamic mechanics to generate high vacuum suction or intense discharge pressure. Therefore, they cannot overcome the heavy static resistance created by dense materials sitting inside a pneumatic duct.
A: Choose a direct-drive blower when you have tight mechanical space constraints, require extremely high RPMs, and want to eliminate routine belt maintenance. Choose a belt-drive system if the blower operates in exceptionally hot, harsh environments where you need to easily access and replace standard external electric motors.
A: Turn-down capability refers to a blower's flexible operational range. It measures how effectively the machine can reduce its airflow output and electrical power consumption during periods of low facility demand, usually controlled via a Variable Frequency Drive, without losing mechanical stability or stalling the motor.
