Commercial and industrial fans consume roughly 256 billion kWh annually. According to U.S. Department of Energy data, this represents about 6.5% of total national electricity usage. Specifying the wrong motor carries heavy financial and operational risks. Mismatched motors create severe temperature differentials across system components. They severely degrade system efficiency and ruin SEER ratings in HVAC networks. They also cause rapid electrical failure under static pressure spikes. These failures eventually lead to unacceptable production downtime.
This guide provides a technical evaluation framework for facility managers, engineers, and procurement teams. We explain how to match aerodynamic loads with specific motor types. You will learn to decode speed configurations, physical blade structures, and total cost of ownership variables. We also detail the counter-intuitive troubleshooting physics of Fan Laws. Finding the correct Industrial Blower configuration prevents catastrophic system failure.
ASME Categorization is Absolute: A true industrial blower is defined by the American Society of Mechanical Engineers (ASME) by its discharge-to-suction pressure ratio (specifically between 1.11 and 1.20), dictating precise motor torque requirements.
Speed Dictates Efficiency (PSC vs. ECM): Upgrading from fixed low-speed PSC motors to variable-speed ECMs radically alters TCO, allowing systems to dynamically adapt to static pressure changes while maintaining optimal SEER ratings.
Aerodynamics Define Motor Load: The choice between forward-curved, backward-inclined, or radial impeller designs directly influences whether a motor requires high torque for high pressure or steady RPMs for sheer volume.
"Fan Laws" Govern Troubleshooting: Contrary to instinct, a blocked filter on a traditional centrifugal blower reduces motor amp draw, while the same blockage on an ECM or axial fan spikes the amperage.
Engineering standards separate fans, blowers, and compressors through exact mathematical thresholds. The American Society of Mechanical Engineers (ASME) defines a blower based on its specific discharge-to-suction pressure ratio. A device qualifies as a blower only if this ratio falls between 1.11 and 1.20. Below 1.11, the device operates as a fan. Above 1.20, it functions as a compressor.
You must understand the physical mechanism driving this ratio. Blower motors utilize centrifugal force to increase the kinetic energy of surrounding air. As this highly accelerated air hits the heavy blower casing, it encounters immediate resistance. That resistance converts sheer kinetic energy into measurable static pressure. Your motor must provide adequate torque to sustain this energy conversion without stalling.
To evaluate baseline load conditions, engineers calculate the mechanical brake horsepower (BHP) required. This calculation directly accounts for the air volume moved and the total static pressure generated. If the calculated BHP exceeds the motor's rated capacity, the unit will stall. You must leave a safety margin of at least 10% to 15% when matching motor horsepower to impeller load.
Fluid dynamics dictate an unavoidable physical reality. Compressing air at high pressures generates considerable heat. As air accelerates and impacts the housing, mechanical energy translates into thermal energy. This thermal conversion directly impacts the electrical efficiency of the drive system.
An industrial setup often causes a 3°C to 20°C temperature differential at the discharge point. This trapped ambient heat transfers directly back into the motor housing. Consequently, you must specify motors with appropriate thermal insulation. You need active cooling mechanisms rated for extreme thermal loads to prevent premature winding degradation.
Heat shortens the life of internal motor bearings. For every 10°C increase above the motor's rated operating temperature, the insulation lifespan is cut in half. You must rigorously check the Nameplate insulation class. Class F insulation, for example, handles a maximum temperature rise of 105°C over a 40°C ambient baseline.
Your geographic operating environment drastically alters motor performance. Higher altitudes feature significantly thinner air. Thinner air reduces the overall mass flow rate entering the blower casing. It also severely reduces the natural cooling capacity provided by ambient air passing over the motor shell.
If you operate high-altitude facilities, standard motor sizing will fail. You require specialized motor selections or deliberate derating calculations. Without derating, the motor will over-torque in an attempt to achieve the sea-level mass flow rate. This leads to catastrophic overheating and rapid electrical shorts.
Engineers follow specific derating multipliers based on elevation. At 3,300 feet (1,000 meters), standard motors operate at their full service factor. At 9,000 feet, cooling capacity drops by nearly 30%. You must select a larger frame size to compensate for this lost thermal dissipation.
Many legacy ventilation systems rely on a Low-speed Motor built around Permanent Split Capacitor (PSC) technology. These motors operate at a strictly fixed RPM. They draw a constant amount of current regardless of the actual airflow demand in the ductwork.
They offer the lowest initial procurement cost. Maintenance teams appreciate their incredibly simple wiring schematics. However, they suffer from high energy waste. PSC units experience harsh start-and-stop wear during operation. Most importantly, they show a complete inability to adapt to fluctuating static pressure conditions within a duct system.
You will typically find single-speed PSC applications in basic, non-critical ventilation tasks. They belong in applications where continuous air cycling is not expected. Physically, they often sit in the bottom of residential furnaces or inside primary, older-generation air handler units.
To gain operational flexibility, facility engineers often specify a Mid-speed Motor. These configurations utilize a tapped electrical winding or a step-down resistor control module. This specific wiring allows the system to offer pre-set low, medium, and high airflow outputs.
A multi-speed system offers a strong middle ground for your total cost of ownership (TCO). By dropping to a lower speed during reduced demand, it provides much better acoustic control. It yields moderate energy savings compared to rigid single-speed alternatives. Yet, it still lacks infinite, dynamic variable adjustment. This means you will face performance gaps during severe pressure fluctuations.
Technicians adjust these speeds manually by switching the active wire lead on the control board. The black wire typically engages the highest speed winding, while the red wire engages the lowest. You must verify these color codes against the manufacturer schematic to avoid stalling the unit on startup.

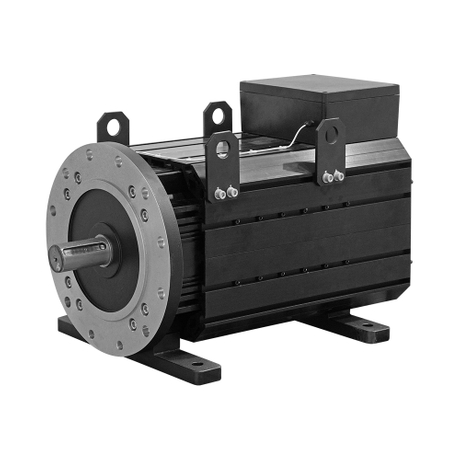

Modern efficiency demands rely heavily on the High Speed Motor design. These are typically engineered as Electronically Commutated Motors (ECM) or Brushless DC (BLDC) platforms. These units achieve continuous, infinite RPM adjustment via smart microprocessor controls. By removing physical brushes, they eliminate friction and operational spark risks.
ECM technology presents the highest upfront capital cost. However, it delivers rapid return on investment (ROI) through massive electrical savings. Because they operate at optimized speeds based on real-time load demand, their expected lifespan easily reaches 10 to 20 years with proper maintenance schedules.
These variable-speed platforms fundamentally transform system impacts. They are strictly mandatory for operating high-SEER rated equipment. By facilitating continuous, low-RPM air filtration, they enable precise indoor humidity control. They automatically and dynamically compensate for minor duct leaks or restrictive filter blockages without human intervention.
Motor Technology | Speed Control Capability | Energy Efficiency | Initial Cost | Best Application Environment |
|---|---|---|---|---|
PSC (Single-Speed) | Fixed single RPM | Low (Constant draw) | Very Low | Basic ventilation, intermittent operation |
Tapped Winding (Multi-Speed) | Pre-set Low/Med/High | Moderate | Medium | Standard HVAC, variable occupancy zones |
ECM / Brushless DC | Infinite, dynamic variable | Extremely High | High | High-SEER equipment, precise climate control |
Impeller geometry dictates how a motor handles the air. The physical structure of the wheel fundamentally changes torque expectations. If you match the wrong blade profile to your drive system, you will destroy the internal bearings.
Forward Curved ("Hamster Wheel"): This design relies on multiple small blades facing the direction of rotation. It uses low pressure to move massive air volumes. It requires configurations optimized for steady, low-resistance operation.
Backward Inclined/Aerofoil: These blades lean away from the rotation direction. The structure relies on flicking air rather than violently cutting it. It operates highly efficiently and incredibly quietly. Engineers often utilize a flat, belt-driven design here. This physically isolates the bearings from the direct operational stress of the heavy impeller shaft.
Radial ("Paddle Wheel"): This utilizes straight, heavy-duty blades radiating directly from the hub. It acts as a severe industrial duty mechanism. You must equip this with high-torque systems to handle heavy particulate loads, extreme heat applications, or corrosive offshore environments.
A strict geometry rule-of-thumb governs system sizing. You must balance impeller diameter against its width. The diameter determines the overall static pressure capability. The width or depth of the wheel determines the cubic airflow volume. Your torque must scale linearly with diameter increases.
Beyond centrifugal designs, alternative aerodynamic shapes resolve different volumetric challenges. Each aerodynamic profile places a highly unique strain pattern on the drive mechanism.
Axial Fans: These pull and move air perfectly parallel to the main shaft. They push immense volumes of air but cannot generate meaningful static pressure. They require lower torque but demand high sustained RPMs.
Diagonal (Mixed Flow): This acts as a structural hybrid. The impeller intersects the rotation axis at a constant, calculated angle. It successfully balances the high volumetric flow of an axial fan with the strict pressure capabilities of a centrifugal housing.
Cross-Flow (Tangential): This utilizes a long, cylindrical wheel. It pulls air radially and discharges it at a sharp 90-degree angle. It provides uniform, wide airflow. Engineers specify this design for compact commercial heating and cooling air curtains over entryways.
Heavy industry requires brute force. Positive displacement blowers, such as the famous Roots-type design, trap a fixed volume of air in a mechanical pocket. They force that exact volume out per revolution, entirely regardless of system back-pressure.
This physical certainty demands exceptionally robust drive systems. If a blockage occurs, the unit will continue pushing until an electrical breaker trips or a mechanical shaft snaps. You will find these B2B applications in vacuum clamping for packaging lines. They power pneumatic powder conveying in pharmaceutical plants. They manage deep wastewater aeration. Automotive OEM engineers also rely on miniaturized versions for EV battery cooling systems and specialized automotive HVAC functions.
Selection begins with strict mathematical mapping. You must map the required air volume, measured in cubic meters per hour (m³/hour) or CFM, directly against static pressure requirements. Standard centrifugal units typically measure between 0.35 to 0.70 kg/cm². Heavy industrial setups measure resistance in precise mbar values.
Next, evaluate environmental ruggedness. Specify correct casing material requirements. Corrosive chemical environments demand marine-grade stainless steel housings and hermetically sealed enclosures.
You must rigorously define your IP ratings and NEMA insulation classes. Applications involving moisture or heavy airborne machine oil require an IP55 rating. High-heat applications, such as commercial fryers or industrial curing ovens, require Class F insulation to prevent catastrophic electrical shorting. Utilizing an Open Drip Proof (ODP) frame in a dusty textile plant will cause rapid failure. You must specify a Totally Enclosed Fan Cooled (TEFC) frame for dirty environments.
Modern industrial integrations require advanced telemetry. You must evaluate variable-speed units featuring Pulse Width Modulation (PWM) inputs. Pair these with direct tachometer outputs. This creates a closed-loop feedback system allowing facility management software to track real-time operational health.
You should discuss the physical integration of airflow monitors inside the discharge duct. You can program these monitors to trigger bright LED warnings or acoustic alarms if internal airflow drops below a critical threshold of 8.2 ft/s. This early warning prevents complete meltdown during filter blockages.
Factor in operational acoustics. Emphasize the engineering reality of sound perception. A 10dB increase equates to a doubling of perceived noise to the human ear. If you deploy equipment in sound-sensitive commercial environments, ECM technology becomes mandatory purely for their acoustic dampening profiles at partial loads.
Fluid dynamics heavily impact electrical draw. Most novice technicians misdiagnose electrical failures because they do not understand standard Fan Laws.
The Centrifugal PSC Paradox confuses many operators. If a filter or duct becomes heavily blocked, system static pressure rises. Because the impeller spins in a vacuum, mass flow decreases. Therefore, the unit actually does less physical work moving air mass. This results in a sudden, sharp drop in amp draw. A lower amp draw on a traditional setup means you have a severe airflow blockage, not a failing electrical panel.
The ECM and Axial Reaction behaves completely opposite. Under the exact same blockage, an ECM programmed for constant torque detects the resistance. It will aggressively ramp up its RPMs to fight the blockage and maintain CFM. This causes a massive spike in amp draw and leads to severe overheating. Axial fans naturally base their mechanical load on system pressure, causing immediate amp spikes when obstructed.
Physical warning signs present themselves weeks before total failure. Train your operators to listen for distinct rattling or deep humming. This noise indicates inevitable bearing failure. Teach them to smell for ozone or burning metallic odors, a clear indicator of winding overheating. Always monitor your facility software for sudden, unexplained utility bill spikes.
You should execute diagnostics through a strict sequential funnel to isolate the root cause effectively.
Check the main electrical fuse: Look closely for evidence of severe current spikes or blown filaments.
Test the contactor relay: Ensure actual power transmission moves from the control board to the primary terminals.
Inspect the control module: Use an automotive multimeter to verify the physical resistor block is intact.
Test the winding resistance: Measure the ohms across the internal phases to detect direct shorts to the ground casing.
Verify the capacitor: Measure microfarads on single-phase units to ensure the unit generates sufficient starting torque.
Installation teams frequently make mechanical errors. The most common pitfall involves 3-Phase wiring polarity. Reversing the electrical polarity will cause the three-phase unit to run entirely backward. The impeller will still physically move air, which thoroughly confuses novice technicians. However, the system operates at a catastrophic 40-60% performance loss.
Understand the economics of repair versus replacement. If a multi-speed blower only works on its highest possible setting, the electrical resistor network has blown. The highest speed bypasses the speed controls completely. Replacing this resistor is a minor, inexpensive fix. However, if the bearings are physically seized, or the unit is over 15 years old, replacing the entire assembly represents the most financially sound long-term decision.
Audit your current ventilation system's total static pressure immediately to identify unknown airflow restrictions.
Calculate the 5-year ROI of upgrading legacy single-speed units to high-speed variable ECM setups based on your local utility rates.
Implement scheduled ammeter checks on your primary panels to catch Fan Law deviations before mechanical bearing failure occurs.
Consult directly with a fluid dynamics engineer to match impeller geometry with your exact ductwork diameter prior to issuing a purchase order.
Standardize your facility's NEMA enclosure requirements to prevent premature winding failure from dust and moisture contamination.
A: PSC is a fixed-speed, low-efficiency platform utilizing older capacitor technology. ECM uses advanced electronic commutation for infinite speed variance. ECMs draw significantly less electricity and adapt automatically to duct pressure changes in real-time.
A: Yes. In ECMs, a blocked filter causes the unit to over-torque and overheat while attempting to maintain airflow. In PSCs, the lack of moving air removes the primary cooling mechanism, leading to rapid thermal winding failure.
A: Yes, modern commercial air handlers utilize a single, central internal unit. This single platform pushes return air across either the gas heat exchanger or the cooling evaporator coil, depending entirely on the active thermostat mode.
A: This is the textbook symptom of a blown resistor block. The highest speed setting naturally bypasses the resistor entirely, running direct voltage straight to the windings. You only need to replace the damaged resistor component.
A: Motorized impellers feature a backward-curved fan blade with the drive system built directly into the wheel's central hub. This design eliminates the need for an external scroll housing, saving critical spatial footprint in compact machinery.
A: According to fluid dynamic Fan Laws, a lower-than-expected amp draw on a traditional centrifugal setup indicates a severe blockage in the ductwork. The restriction starves the impeller wheel of the air mass needed to create mechanical load.
A: If the failure is purely electrical and the unit is relatively new, replacing the resistor is sufficient. If bearings are grinding, airflow is persistently weak, or the unit is nearing its 15-year lifespan, replacing the entire assembly is more cost-effective.
