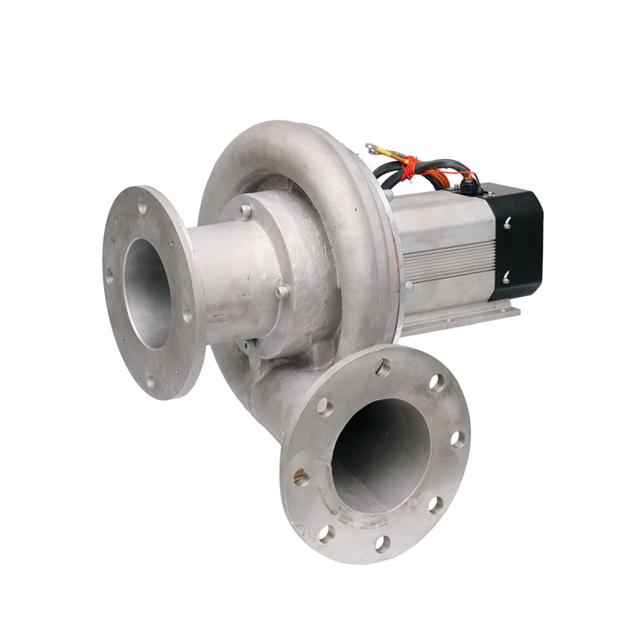

Blower rooms generate massive amounts of thermal energy during standard operation. Improper ventilation inevitably creates dangerous ambient temperature spikes inside these enclosed spaces. Hot air carries significantly lower density than cold air. This physical change forces machines to work much harder to move the same mass of oxygen. Motor efficiency drops rapidly under these conditions. Premature equipment failure often follows soon after.
Facility managers and engineers face a complex balancing act during the project decision stage. They must integrate rigorous thermal management, robust acoustic control, and strict environmental protection protocols. These critical factors dictate final room dimensions and overall equipment layout. Ignoring these variables leads to catastrophic system downtime.
This article provides a comprehensive, engineering-aligned framework for facility planning. We explain how to accurately calculate your specific airflow requirements. We explore optimal ventilation layout selections to maximize convective cooling. You will also learn how to mitigate common implementation risks when installing high-capacity blowers in industrial environments.
Proper ventilation protects capital investment by preventing thermal shutdowns and maintaining optimal air density for system efficiency.
Total required airflow (CFM) must account for motor heat rejection, variable frequency drive (VFD) thermal output, and process air intake.
Airflow paths must be deliberately designed—utilizing low inlets and high exhausts—to eliminate dead zones and prevent short-cycling.
Acoustic louvers and weather-resistant dampers are critical for compliance and system reliability, particularly in continuous-duty applications like wastewater treatment.
Proper room design protects your vital infrastructure and ensures absolute process continuity. Poor ventilation directly attacks system mechanics and site reliability. High ambient temperatures fundamentally alter fluid dynamics. They lower the air density inside the operating space. This thin, heated air forces an industrial centrifugal blower to spin faster just to deliver the required mass flow rate. The machine consumes excessive electrical power to meet baseline performance targets.
Sustained heat severely degrades critical internal machine components. Motor winding insulation deteriorates rapidly under high thermal stress. Bearing lubricants thin out and quickly lose their protective properties. Manufacturers clearly stipulate maximum ambient temperature limits in their operating manuals. Exceeding these thermal thresholds frequently voids expensive equipment warranties. Facility owners bear the full burden of replacement parts when they ignore environmental guidelines.
We must view thermal shutdowns as critical process failures rather than routine maintenance issues. An unexpected thermal shutdown causes immediate operational downtime. Municipal plants lose vital biological treatment capacity during an aeration outage. Industrial manufacturing facilities experience completely halted production lines. The operational stakes extend far beyond simple repair bills. They encompass compliance violations, environmental fines, and severe process interruptions.
Achieving reliable climate control requires precise mechanical mathematics. Engineers use specific heat data points to calculate the exact cubic feet per minute (CFM) necessary to stabilize the environment.
You cannot guess or estimate heat loads. Planners need precise BTU/hr heat rejection data directly from the equipment manufacturer. This data must cover the blowers, their associated variable frequency drives (VFDs), and all localized control panels. Heat rejection behavior changes significantly based on motor enclosure types. Totally enclosed fan-cooled (TEFC) motors cast heat differently than open drip-proof (ODP) designs. TEFC units rely on external airflow over their casing fins. ODP units pull cooling air directly through their internal windings. You must categorize every single heat-generating source inside the room.
Inlet air sourcing dictates your overall ventilation volume requirements. Systems either draw process air directly from the ambient room or use piped outside air intakes. Room-drawing setups demand substantially larger ventilation systems. You must size the intake to provide fresh cooling air and the required process air simultaneously.
System Configuration | Ventilation Requirements | Primary Operational Challenge |
|---|---|---|
Direct Room Draw | Requires massive CFM to cover both motor cooling and process air intake. | Managing severe negative pressure risks. |
Piped Outside Intake | Lower CFM needed; ventilation only manages ambient room heat rejection. | Increased ductwork footprint and initial piping complexity. |
Delta T represents your allowable temperature rise. It defines the maximum permitted difference between the outdoor ambient temperature and the inside room temperature. Engineers typically cap this metric between 10°F and 15°F for most industrial environments. If outside summer air hits 95°F, a 10°F Delta T keeps the room at 105°F. Setting a tighter Delta T target requires a significantly higher CFM delivery. Planners must carefully balance acceptable equipment operating conditions against the practical physical limits of exhaust fan sizing.
Moving air efficiently requires deliberate spatial planning. Poor layout decisions ruin perfectly calculated CFM targets. You must guide the air exactly where it needs to go.
Standard room layouts rely on strict cross-ventilation mechanics. You should position intake louvers low on the coolest available wall. This is often the North-facing side of a building structure. Engineers then place exhaust fans high on the completely opposite wall. This diagonal arrangement leverages natural thermal convection. Hot air naturally rises toward the high exhaust points near the ceiling. Fresh cool air sweeps across the floor to bathe the equipment bases.
Air behaves like water, actively seeking the path of least resistance. You must never place intake and exhaust points too close together. Installing both on the same wall guarantees system failure. This flawed layout creates localized airflow loops. The fresh air immediately exits the exhaust fan without ever cooling the room. It leaves your expensive equipment stranded in stagnant, baking heat zones. Maintain maximum physical separation between inlet and outlet points.
Fans push against invisible physical resistance during operation. Louvers, screens, and intake filters create substantial static pressure drops. You must specify exhaust fans capable of handling this exact resistance. A fan rated for 10,000 CFM at "free air" might only deliver 6,000 CFM when pulling through heavy intake filters. Engineers must calculate the total pressure drop of all room inlet hardware. This calculation guarantees the system delivers the actual required CFM under real-world operating conditions.
Municipal and industrial treatment environments introduce aggressive operational challenges. Standard commercial HVAC approaches fail quickly in these harsh settings. You must upgrade your materials and acoustic strategies.
Wastewater facilities generate highly corrosive atmospheres. Hydrogen sulfide (H2S) gas destroys standard galvanized steel components rapidly. You must specify fiberglass reinforced plastic (FRP) or heavy epoxy-coated ventilation hardware. These materials resist aggressive chemical exposure. A dedicated wastewater aeration blower requires a pristine, dry environment to function reliably. Proper humidity control prevents internal condensation from rusting critical machine surfaces.
High-speed machinery generates intense operational noise. Sound easily escapes through large ventilation openings, creating compliance nightmares. Facilities must meet strict occupational noise compliance (OSHA) standards, which generally cap exposure at 85 dBA. They also face local property line ordinances regarding community noise pollution. We strongly recommend installing acoustic louvers or dedicated duct silencers. These specialized components allow air to pass freely while trapping harmful sound waves inside the building envelope.
Airborne particulates pose a severe threat to high-speed rotating equipment. Intake filtration represents an absolute necessity. High-quality filters prevent dust and debris from fouling the internal impellers. They also stop dirt from clogging the external motor cooling fins. Clogged fins trap heat directly against the motor casing, vastly accelerating thermal failure. You must implement a rigorous filter replacement schedule to maintain proper airflow volumes.
Even well-calculated ventilation designs encounter real-world operational hurdles. Anticipating these risks prevents catastrophic system failures.
Ventilation systems face severe over-cooling risks during winter months. Pulling freezing outside air across equipment causes rapid condensation and freezes internal water lines. We recommend installing motorized, thermostatically controlled louver dampers. These smart dampers modulate airflow automatically. They restrict freezing intake air to keep the room within safe, stable operating temperatures. They also seal the room entirely when systems remain offline.
Designers frequently overlook VFD heat generation. Modern variable frequency drives emit substantial thermal energy during normal operation. This oversight leads to rapid control faults and unexpected electrical shutdowns. VFDs require dedicated cooling strategies to survive. You must position them directly in the cool intake airstream or provide immediate, localized heat extraction hoods above the cabinets.
Exhaust fans can easily overpower a room if intake louvers are undersized. This oversight creates excessive negative pressure inside the space. High negative pressure starves a centrifugal blower of necessary inlet air. It forces the machine to fight the room just to breathe. This violent struggle causes damaging pressure pulsations and severe aerodynamic surging. You must ensure intake areas are large enough to maintain neutral room pressure at all times. Proper louver sizing protects your centrifugal blowers from premature mechanical fatigue and bearing destruction.
Blower room ventilation demands rigorous mechanical calculation rather than treating it as a quick architectural afterthought. Your facility's long-term reliability depends entirely on precise environmental control. Implementing these strategies ensures machinery operates at peak efficiency.
Compile exact heat rejection data, altitude specifications, and process air requirements directly from your equipment submittals before finalizing HVAC designs.
Establish a clear Delta T target firmly aligned with your regional climate extremes.
Map out cross-ventilation pathways to completely eliminate stagnant heat pockets around sensitive electronics.
Engage a certified mechanical engineer or the manufacturer's application team to mathematically validate your final CFM calculations and louver sizing.
A: You calculate CFM by dividing the total heat rejection (in BTU/hr) by the product of the standard air constant (1.08) and your desired Delta T. First, sum the BTU/hr from all motors and VFDs. Then, determine your maximum allowable temperature rise. The formula is: CFM = Total BTU/hr / (1.08 × Delta T). Add required process air volume if the blowers draw directly from the room.
A: Yes, many setups draw process air directly from the surrounding room. However, you must upsize the ventilation system significantly. The fans and louvers must replace the massive volume of air consumed by the machinery while simultaneously providing enough airflow for cooling. Failing to upsize correctly causes severe negative pressure.
A: Motorized dampers actively regulate ambient temperature during cold weather by restricting freezing intake air. This prevents facility water lines from freezing and stops harmful condensation inside the equipment. Additionally, they quickly seal the room if automated fire suppression systems activate, preventing fresh oxygen from feeding a potential fire.
A: VFDs are highly sensitive to thermal stress and often require specialized attention. While they can share the main equipment room, they generate concentrated heat. Many effective designs place VFDs in a separately conditioned space. Alternatively, engineers position them directly in the cool intake airstream to prevent heat-related control faults.
